PRIME
SEASONIC prime tx 1000w
SKU: prime-tx-1000w
₹1.00
✓ In Stock (10 available)
No description available.
Basic Information
Manufacturer
SEASONIC
Brand
PRIME
Model Number
TX 1000W
Power & Performance
Wattage
1000W
Continuous Power
1000W
Efficiency
80+ Titanium Cybenetics
Regulatory Certifications
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE
Power Rails & Output
Rail Design
Multi-Rail
+12V Rail
83.0A / 996W
+12V Max Load
83.0A
+5V Rail
25.0A
+5V Max Load
25.0A
+3.3V Rail
25.0A
+3.3V Max Load
25.0A
+5Vsb (Standby) Rail
3.0A
-12V Rail
0.3A
Form Factor & Dimensions
Modularity
Fully Modular
Form Factor
ATX
Dimensions
L: 170mm × W: 150mm × H: 86mm
Standards & Versions
ATX Version
ATX 2.4
Connectors & Ports
Power Connectors

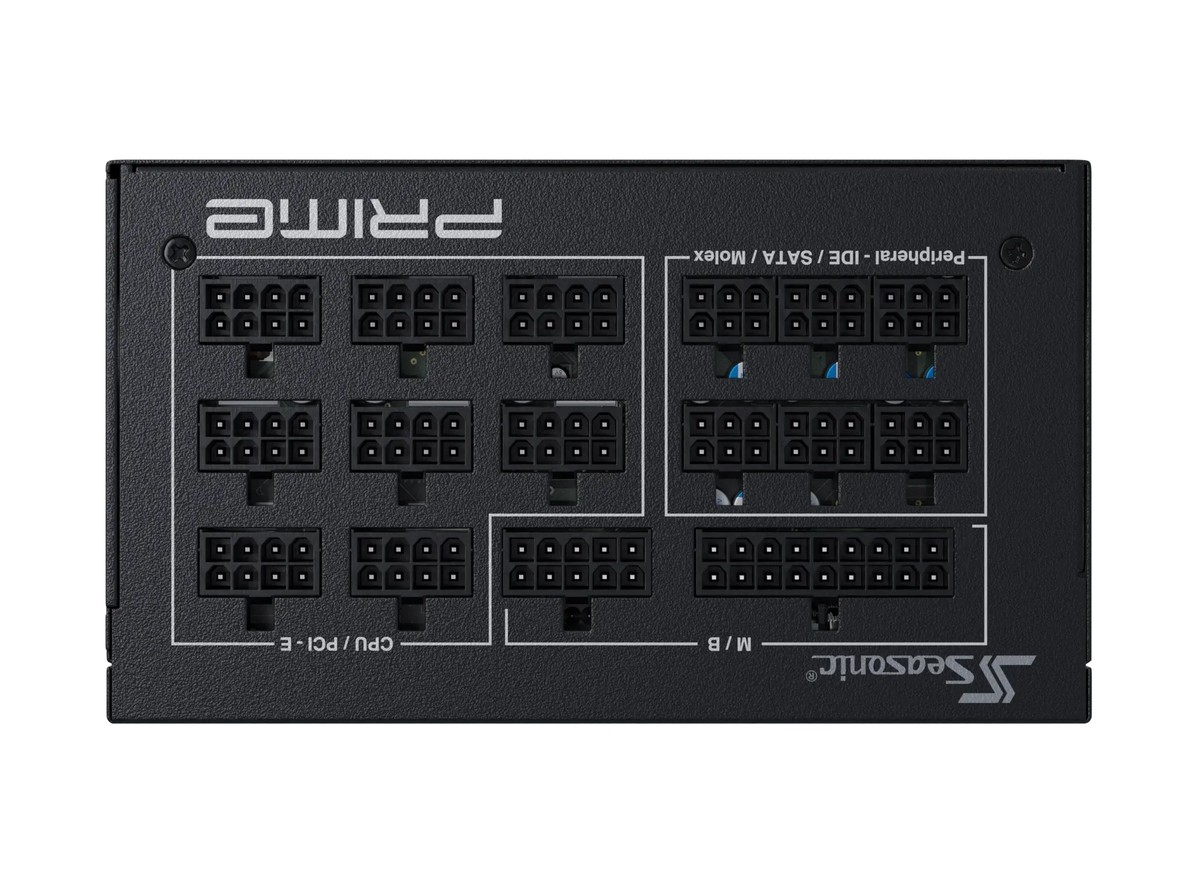

1x 16-pin (12VHPWR), 1x 8-pin PCIe, 6x 6+2-pin PCIe, 1x 4+4-pin CPU
SATA Connectors
4
Molex Connectors
3
Cooling & Thermal
Fan
135mm Fluid Dynamic Bearing
MTBF
50,000 hours
Operating Temperature
0°C ~ 50°C
Electrical Input
Input Voltage
100-240V
Input Current
13-6A
Input Frequency
50-60Hz
PFC
Active
Power Good Signal
100-150ms
Hold-up Time
≥ 16ms at 100% Load
Features & Technology
Features
PCIe 5.0 Ready
Protection & Safety
Protections
OVP/ OPP/ SCP/ OCP/ UVP/ OTP/ Inrush Protection
Compliance & Certifications
ErP 2014 Lot 3
Yes
Warranty & Support
Warranty
12 years
