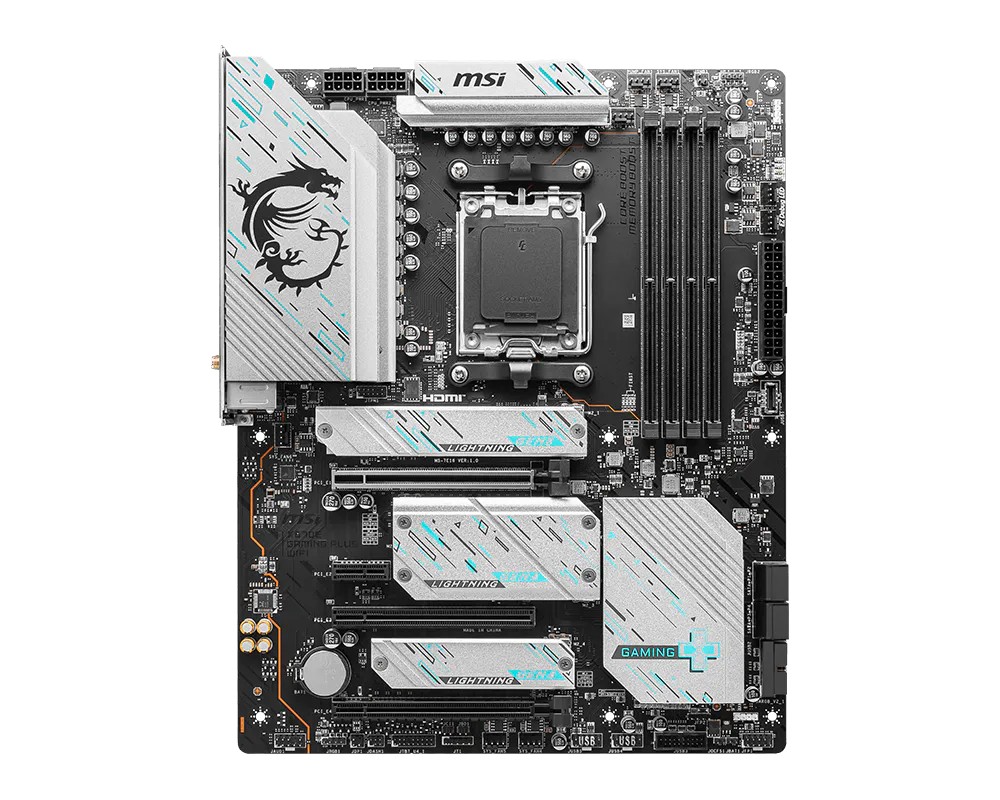

MSI X670E GAMING PLUS WIFI
SKU: X670E-GAMING-PLUS-WIFI
₹28600.00
₹46885.00
39% off
✓ In Stock (5 available)
Overview
The X670E GAMING PLUS WIFI motherboard supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors, offering robust performance and advanced features.
Key Features
- Processor Support: Compatible with AMD Ryzen™ 9000 / 8000 / 7000 Series processors
- Memory Support: DDR5 Memory, up to 7800+(OC) MHz
- Power Design: 14+2+1 Duet Rail Power System with dual 8-pin CPU power connectors, Core Boost, and Memory Boost
- Storage: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2
- Cooling Solution: Extended Heatsink Design and M.2 Shield Frozr for high performance
- PCB Quality: 6-layer PCB with 2oz thickened copper and server-grade level material
- Audio: Studio grade sound quality (AUDIO BOOST)
Performance
Designed for high-performance gaming and non-stop work, the X670E GAMING PLUS WIFI ensures a lightning-fast game experience with advanced storage options and enhanced cooling solutions.
Basic Information
Brand
GAMING
Form Factor & Dimensions
Form Factor
ATX
Dimensions
304.8 x 243.8 mm
width
243.84
length
304.8
Standards & Versions
Primary PCIe Version
PCIe 5.0 (3.94 GB/s per lane)
Cooling & Thermal
M.2 Heatsinks Included
No
CPU Fan Headers
1
Chassis Fan Headers
4
fan_headers
9
Features & Technology
RGB Headers (12V)
2
ARGB Headers (5V)
2
rgb_headers
2
argb_headers
2
Memory & Storage
RAM Type
DDR5
Max RAM Capacity
256 GB
Max RAM Speed (OC)
7800 MHz
USB Type-C Ports (Rear)
2
Ethernet Speed
2.5 Gbps
ram_type
DDR5
max_ram_speed
7800
ethernet_speed
2.5 Gbps
Warranty & Support
ECC Support
No
XMP Support
Yes
EXPO Support
Yes
ecc_support
False
xmp_support
True
expo_support
True
Other Specifications
Company
MSI
Socket
AM5
Chipset
X670
RAM Slots
4
PCIe x16 Slots
3
PCIe x4 Slots
1
PCIe x1 Slots
1
M.2 Slots (Total)
4
M.2 PCIe 5.0 Slots
2
M.2 PCIe 4.0 Slots
2
SATA 6Gb/s Ports
6
USB 4.0 Ports
1
USB 3.2 Gen 2 (10Gbps)
8
USB 3.2 Gen 1 (5Gbps)
4
USB 2.0 Ports
8
Front USB-C Header
Yes
Ethernet Controller
Realtek Realtek® RTL8125BG (1.0Gb)
Dual Ethernet
No
WiFi
WiFi 6E (802.11ax)
Bluetooth
Bluetooth 5.3
Audio Codec
Realtek Realtek® ALC897 (7.1)
Audio Channels
7.1-Channe
DTS:X Ultra
No
Optical S/PDIF
No
HDMI Ports
1
DisplayPort
1
DrMOS
No
CPU Power Connector
CPU_PWR
ATX Power Connector
ATX_PWR
BIOS Flashback
Yes
Clear CMOS Button
No
Debug LED / Q-LED
Yes
POST Code Display
No
Pre-mounted I/O Shield
No
Wake-on-LAN
No
max_ram
256
m2_slots
4
debug_led
True
ram_slots
4
audio_chip
Realtek® ALC897
hdmi_ports
1
sata_ports
6
form_factor
ATX
usb_c_ports
2
pcie_version
PCIe 5.0
post_display
False
usb_20_ports
8
usb_40_ports
1
dual_ethernet
False
ethernet_chip
Realtek® RTL8125BG
m2_sata_slots
0
pcie_x1_slots
1
pcie_x4_slots
1
audio_channels
7.1-Channel
bios_flashback
True
m2_pcie4_slots
2
m2_pcie5_slots
2
pcie_x16_slots
3
displayport_ports
1
usb_32_gen1_ports
4
usb_32_gen2_ports
8
usb_c_front_header
True
atx_power_connector
ATX_PWR
cpu_power_connector
CPU_PWR
